Yuan HangHigh productivity automatic small clay brick burning tunnel kiln

FOB Reference Price:Get Latest Price
$150,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TK-01
Power:
About 700 Kw
Report Suspicious Activity
Overview
Quick Details
Warranty:
3 years
Brick Raw Material:
Clay
Capacity:
80000---300000pcs per day
Type:
Solid or Hollow Brick Making Machine
Certification:
CE , ISO
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Applicable Industries:
Manufacturing Plant, Construction works
Condition:
New
Processing:
Brick Production Line
Method:
Vacuum Extruder
Automatic:
Yes
Place of Origin:
Henan, China
Brand Name:
Yuanhang
Voltage:
380V
Dimension(L*W*H):
110*20M
Key Selling Points:
Energy saving
Product Type:
Brick Oven in Baking Equipment
Feature:
Very High Profit and Big Output
Fuel:
Coal , Oil or gas fire
Consruction Period:
About 3 months
Workers number:
about 15 workers are needed
Firing Time:
24hours
Drying Time:
About 19 hours
Kiln Width:
3.7M, 4.2M etc
Kiln Length:
>=108M
Supply Ability
Supply Ability:
25 Set/Sets per Month Supply 25 sets Brick Oven in Baking Equipment per month
Packaging & Delivery
Packaging Details
Refractory Brick For Kiln is in Nude Packing.
Port
Shanghai or Qingdao
Tunnel Kiln Infor

Yuan Hang industrial small vacuum drying oven brick making oven for tunnel kiln


1. Tunnel Kiln Brick Plant is the most popular, fully automatic modern brick plant.

2. It consists of aging warehouse ( for processed raw materials maturing ) brick production line, dryer kiln and fired kiln.
3. High Capacity. Daily output ranges from 80,000 to 300,000 pcs Chinese standard bricks (240*115*53 mm)
4. Required land (>=1.5 acres)
5. Be adaptable to both solid and hollow bricks
6. Output is not subject to weather, continuous running. (You can operate 365 days per year)
7. Heavy investment, quick investment return

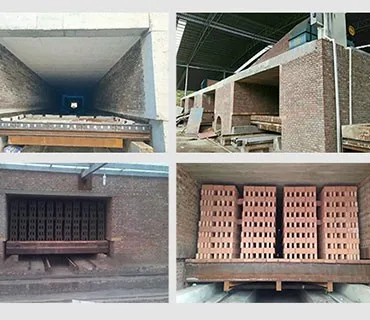

Tunel Kiln Pictures


1. Adopt "quick sintering" theory, It takes about 44 hours from wet bricks drying to final bricks. Waste hot air from firing kiln is recycled to heat wet bricks in dryer kiln. making full use of fuel. Energy saving.
2. Equipped with advanced wastes gas disposal system, achieve environmental protection standard.
3. Customize different size tunnel kiln based on your expected output.
4. Engineers are available to provide on-site service.
5. Worry-free service. Our service including but not limited to
      Free site choosing consultation
      Free raw materials analysis
      Layout plan
      Supply full line brick prodcution machinery, materials needed for tunnel kiln construction and            equipment in tunnel kiln
      on-site engineers service
      Machinery installation, test-run to qualified bricks
      Provide entire working life after sales service and spare parts

Tunnel Flow Chart

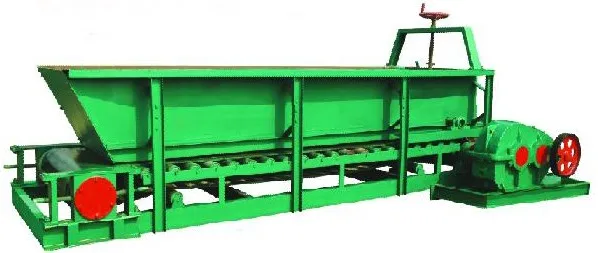

  1. Box Feeder


  1. Feeding raw materials quantitively and evenly
  2. Raw materials roughly processed.



  2. Double Roller Crusher

  1. Crushing raw materials into qualified powder
  2. Rollers are made of high manganese, anti-wear, longer working life
  3. Adjustable distance between two rollers, self protection from too hard materials

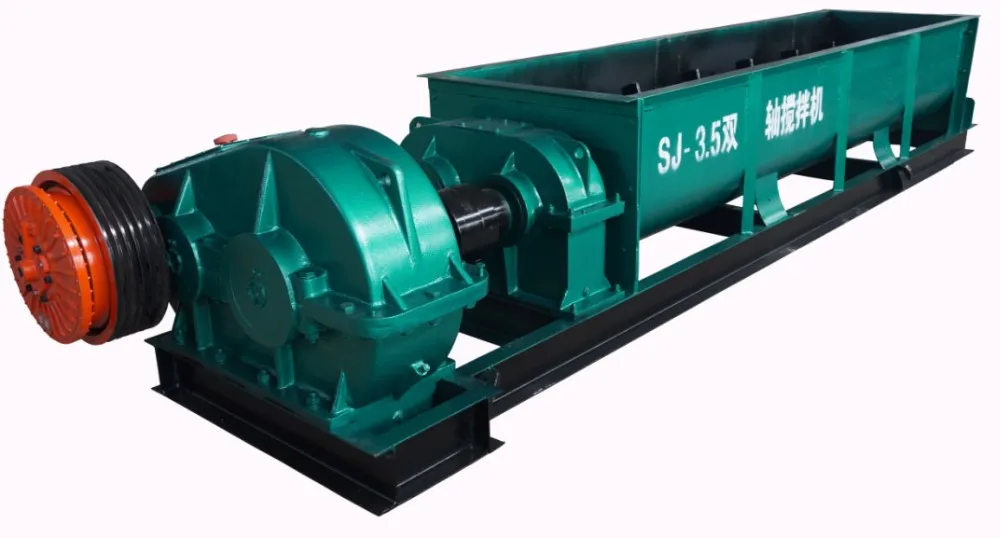

  3. Double Shaft Mixer

  1. Mixing raw materials with water thoroughly, ensure the final bricks quality





  4. Automatic Brick Cutting Machine

  1. brick cutting precisely.
  2. Fully automatic, Perfect bricks shape

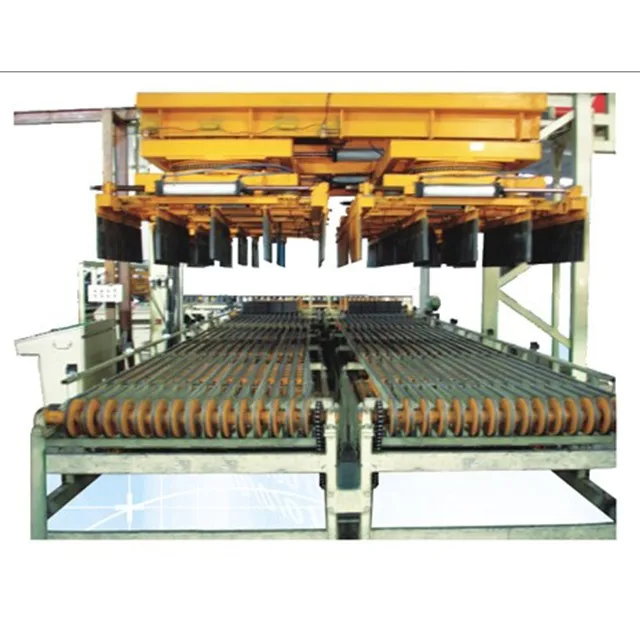

  5. Automatic Brick Stacking Machine

  1. Stacking wet bricks onto kiln car before transported into dryer kiln
  2. Fully automatic, saving at least 10 workers

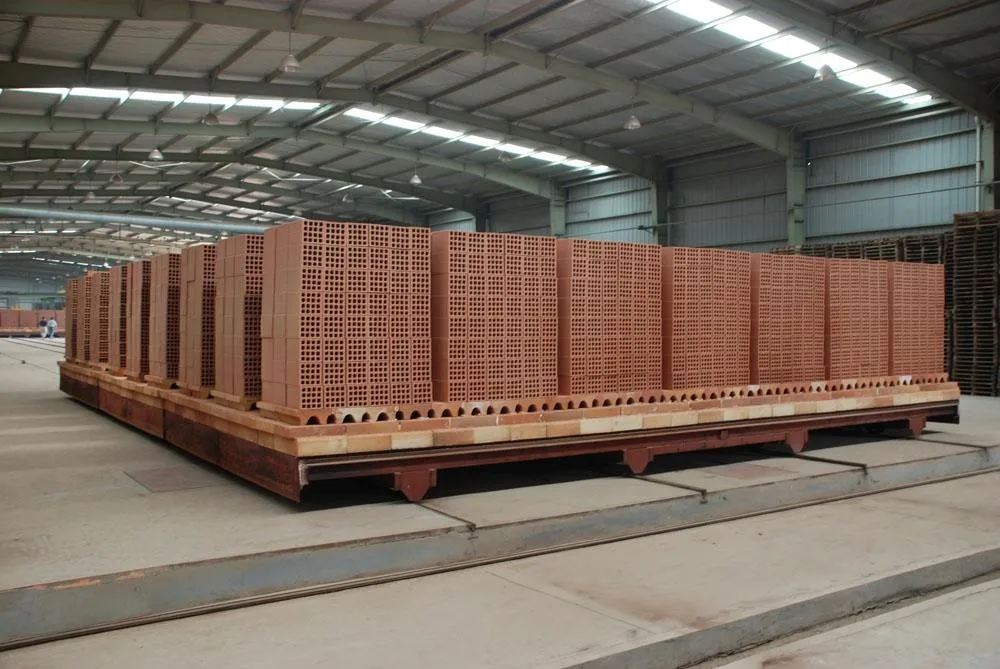

  6. Kiln Car

  1. Wet bricks are stacked onto the kiln cars for drying and firing.

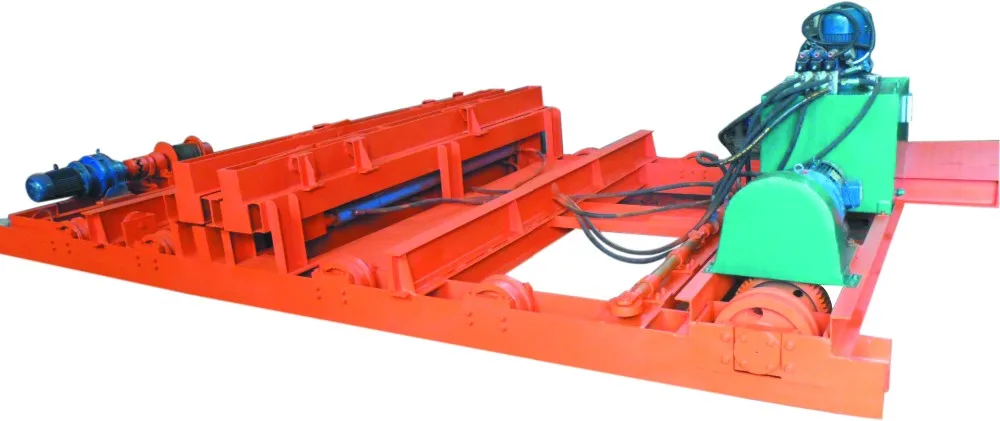

  7. Ferry Car

  1. Ferry kiln cars to designated place

Cases for Kiln

Our bricks are: Tunisia, Myanmar, Uganda, Yemen, Russia, Turkey, Turkmenistan, Spain, Colombia, Indonesia, etc.

Our experienced and diligent engieers are ready to help you construct an energy efficient, automatic brick plant with their advanced technology.
Our Company


Yuanhang Group Machinery - World Quality

      China Brick&Tile Industry Association Designated Manufacturer

      Trustworthy Enterprise for Product Quality

      AAA" Enterprise

      Brick kilns constructed by us have won great fame among our customers both at home and abroad. We have effective "6S" cost and quality control system thus can provide you with best quality machinery at the most reasonable price.

Video Link
Tunnel Kiln Videos Link :
Yuanhang JKY50-4.0 Brick Making Machine Running
https://youtu.be/E9hxRF-wbeg
Yuanhang Raw Materials Aging Warehouse (for raw materials better maturing and mixture)
https://youtu.be/k8jIJ-RmG7k
Yuanhang Tunnel Kiln Production Line 1
https://youtu.be/u1bhE2GItAU
Yuanhang Tunnel Kiln Production Line 2
https://youtu.be/FGpm4AVv9LM
Yuanhang Two Times Stacking for Small Dryer & Tunnel Kiln
https://youtu.be/8GW1ossCitE
Yuanhang Brick Separator Running
https://youtu.be/hUO2xCB9aOM
Yuanhang Cutting Machine & Stacking Machine Running
https://youtu.be/bvU6YEMpfbY
Yuanhang Automatic Red Bricks Loading Machine Running at Site
https://youtu.be/_i-quWC7lWg


If you need other video, feel free to what's app me at +86 155 0371 8390 for free consultation, we have different videos for your refer.

Modern Technology Tunnel Kiln Clay Brick Making
